Product Overview

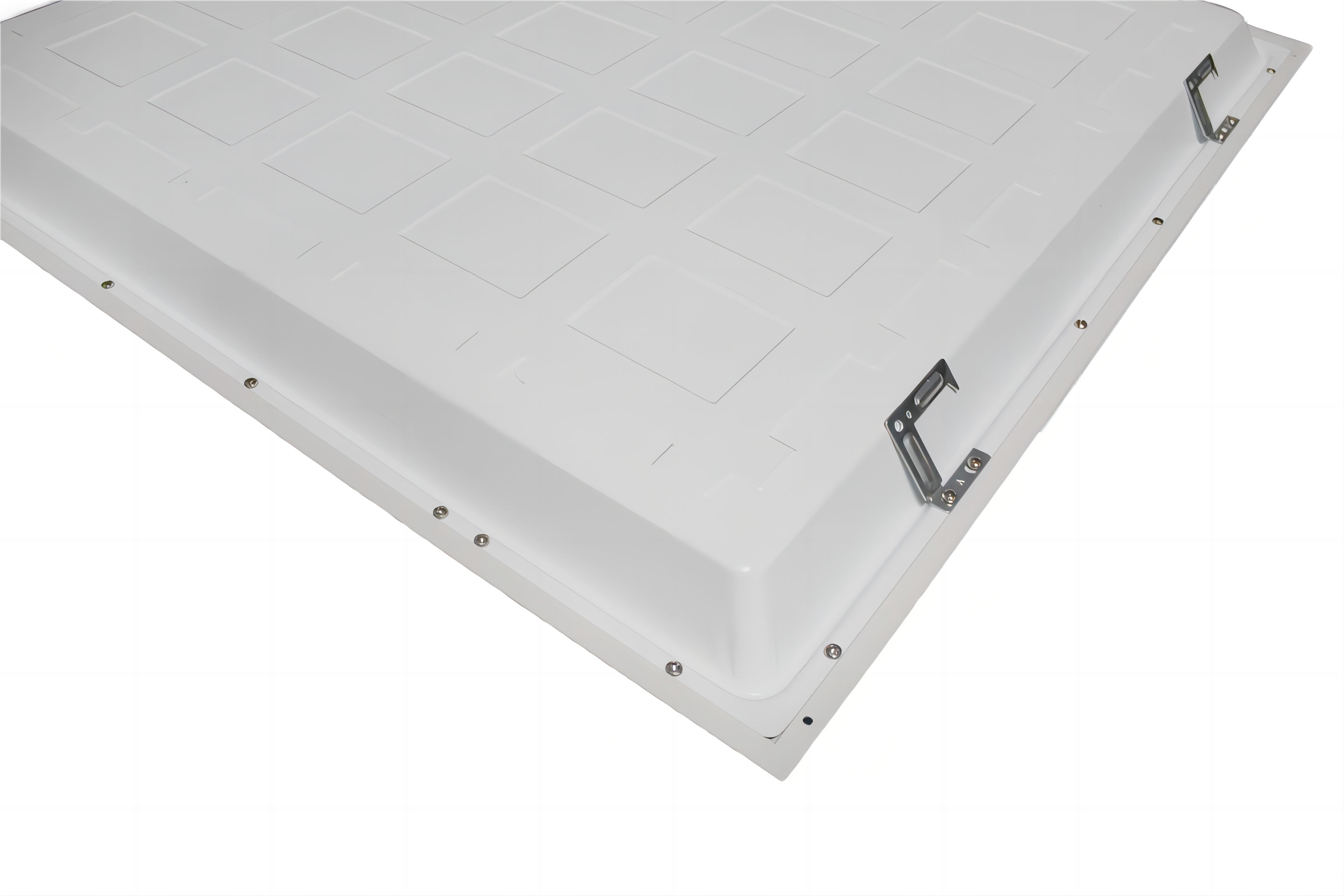

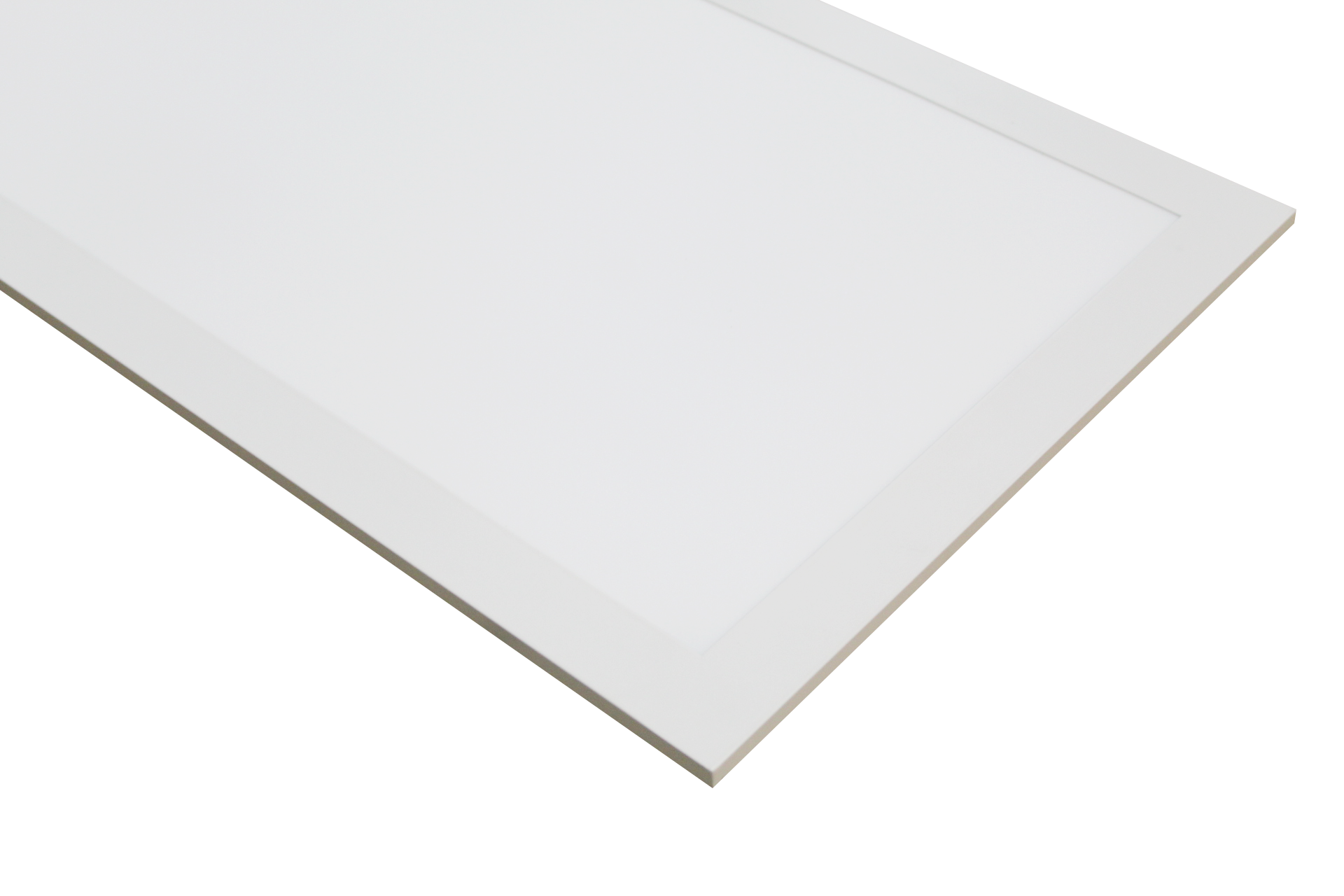

Upgrade your commercial or industrial lighting with the TES backlit 2x2 Multiwatt LED drop ceiling panel light, designed for T-bar or grid ceiling systems. This dimmable LED fixture is ideal for replacing fluorescent lights or for new construction projects.
Engineered for maximum thermal efficiency, the TES BLP ensures cool, maintenance-free operation with its long-lasting LEDs and high-efficiency, flicker-free LED driver. This advanced design eliminates common issues found in traditional fluorescent lighting, such as bulb replacements, buzzing, and flickering, while significantly reducing energy consumption and utility costs.
Featuring a sleek, modern design and uniform illumination, this LED panel light not only improves energy efficiency but also enhances the aesthetics of any commercial or industrial environment. Invest in the TES BLP today for a sustainable, cost-effective lighting solution that boosts both performance and style.
Applications
|
•Offices and Commercial buildings |
•Retrofit Installation |
|
•Hospitals and healthcare facilities |
•Educational institutions |
|
•Hospitality venues |
•Manufacturing facilities and warehouse |
|
•Retail stores and Shopping malls |
•Public transportation hubs |
|
•Gyms and fitness centers |
•Residential buildings |
Certifications
Specifications
| Model NO. | TES-DM-BLP2240WT-3545K | Dimmable | 0-10V |
| Warranty | 5 Years | Equal to | 2-Lamp Fluorescent |
| Input Voltage | 120-277V | CRI | >80 |
| Input Wattage | 40W/35W/30W/25W/20W | Available CCT | 3500K/4000K/5000K |
| Delivered Lumens | 5,000LM/ 4,375LM/ 3,750LM/ 3,125LM/ 2500LM | THD | <20% |
| Efficacy | 125 LM/W | Product Dimension | 24.0*24.0*1.56” |
| Rated Life | >50,000 Hrs | Carton Dimension | 25.0*25.0*3.15” |
| Power Fact | >0.9 | Package | 2pcs/ctn |
| Operating Temp | -40°F to 113°F | Product Weight/pc | 5.0 lb |
| Certifications | UL Damp Locations | Gross Weight/ctn | 11 lb |
