Product Overview
Manufactured for durability using aluminum sheet housing with semi-gloss coating to resist corrosion, discoloration, and scratching. Ventilated driver bay for additional heat dissipation. Damp Location rated.
Manufactured for durability using aluminum sheet housing with semi-gloss coating to resist corrosion, discoloration, and scratching. Ventilated driver bay for additional heat dissipation. Damp Location rated.
Input voltages 120-277V models with 0-10V Continuous Dimming. Tunable 3-CCT (3500K, 4000K, 5000K) and Tunable 3-Wattages. Operating temperatures -4°F to 113°F (-20°C to 45°C).

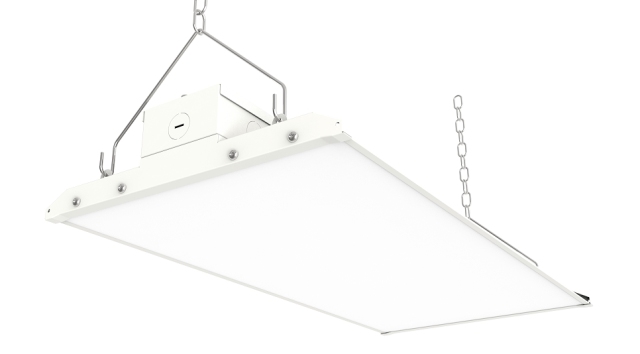

Aluminum V-Hooks and Chains for hanging standard. Optional Pendant Mount Bracket or pair of 10-FT Aircraft Cables available.
Anti-UV Frosted Micro-Filter Polycarbonate Lens standard.
Installed fixture mounted PIR or Microwave Sensor with Daylight Priority. Remote Control or Bluetooth App Control options available.
Installed 90 Minute Emergency Backup Battery Driver options available.
DLC Premium listed. UL certified to meet US and Canadian standards. FCC and RoHS compliant.
5 year exclusive limited warranty.
Applications
|
Warehouses |
•Workshops |
|
•Convention Centers |
•High Bays |
|
•Storage Facilities |
•Distribution Centers |
|
•Factories |
•Supermarkets |
|
•Retail |
•Gymnasiums |
Certifications
Specifications
|
Model NO. |
TES-SS-LHB07-L3-220/160/110W-H-TCP(XX)-Y |
DLC Part # |
KWPDLMWMCLV |
|
Warranty |
5 Years |
UPC |
659359959417 |
|
Input Voltage |
120-277V |
Dimmable |
0-10V |
|
Input Wattage |
220W/160W/110W |
Equal to |
250W MH |
|
Delivered Lumens |
30,800LM/ 22,400LM/ 15,400LM |
CRI |
>70 |
|
Efficacy |
140 LM/W |
Available CCT |
5000K/4000K/3000K |
|
Rated Life |
>50,000 Hrs |
THD |
<20% |
|
Power Fact |
>0.9 |
Control |
Dusk To Down Photocell |
|
Operating Temp |
-40°F to 113°F |
Dimension |
14.33”x5.78”x9.26” |
|
Certifications |
UL Damp Locations |
Weight |
6.5 Lbs |
