Product Overview

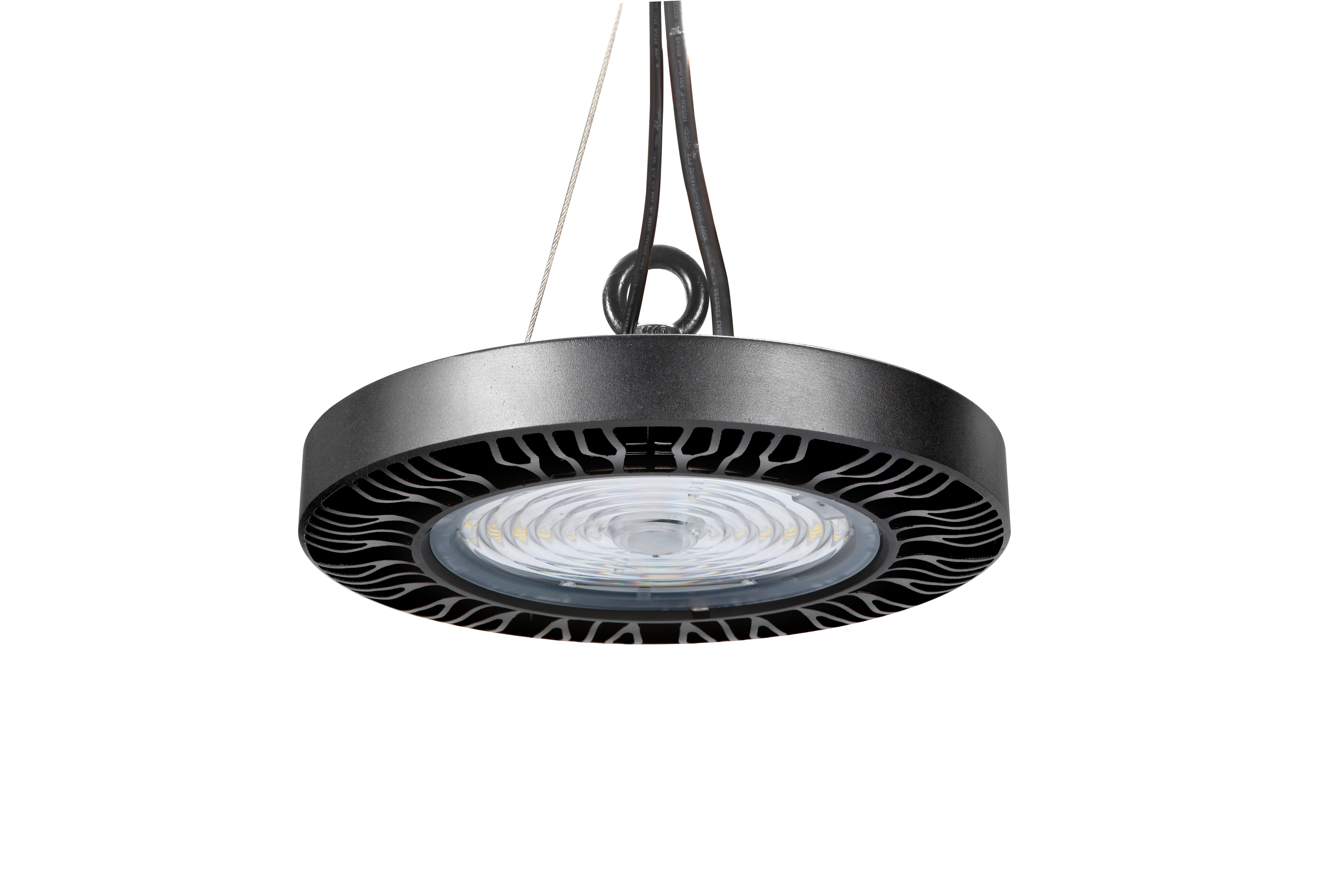

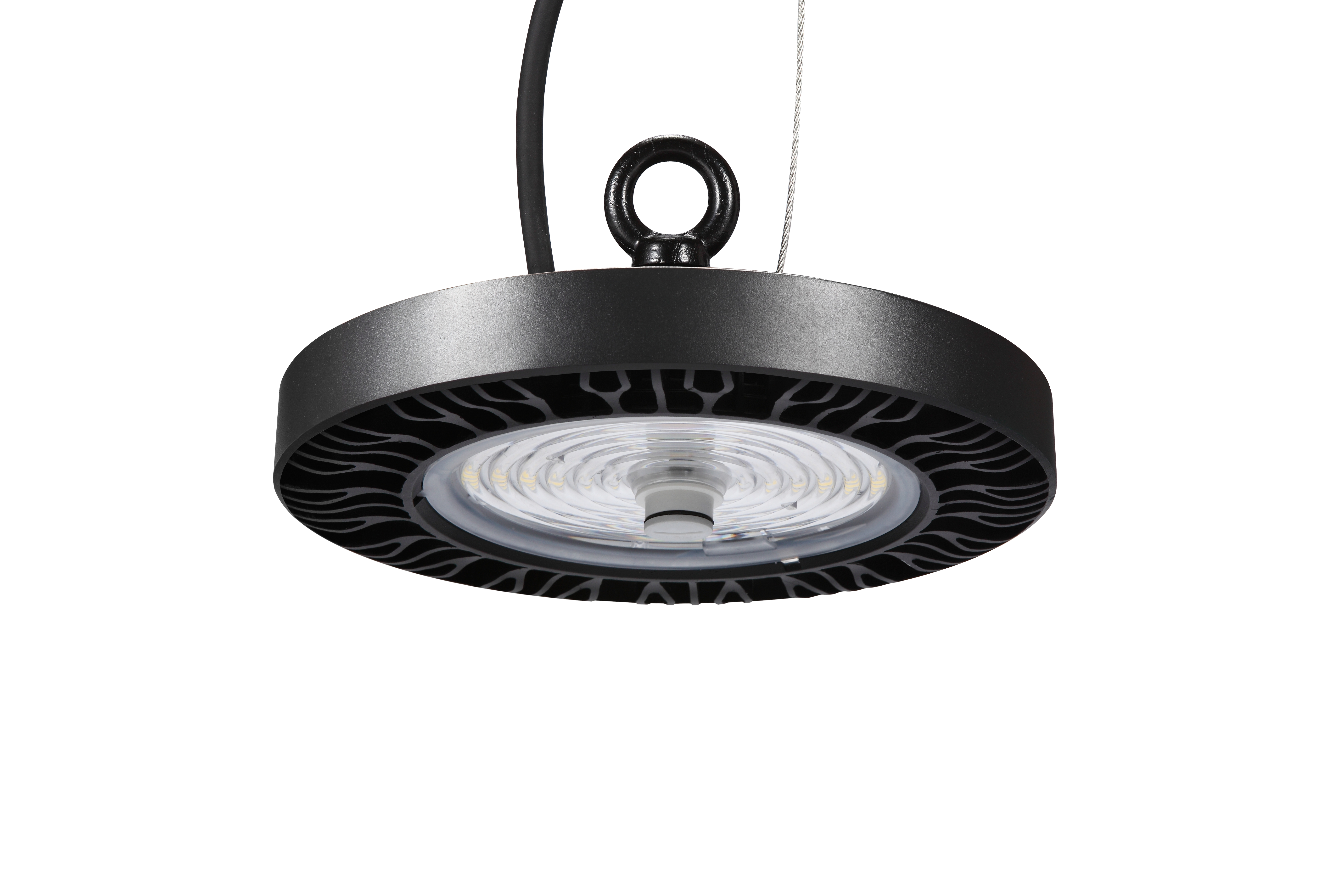

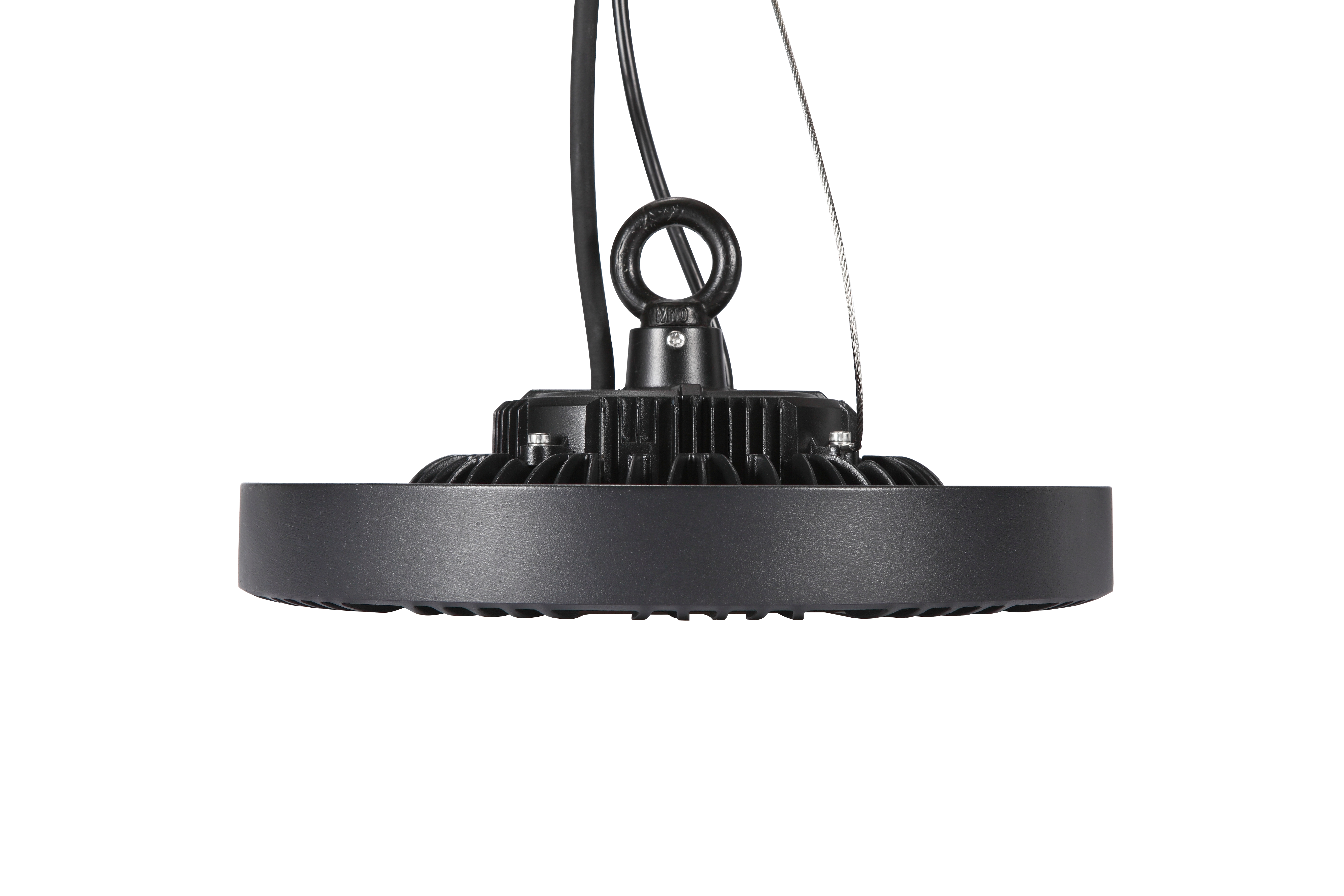

This 100W UFO LED High Bay includes an integrated sensor socket for effortless motion sensor installation. It provides an equivalent output to a 300W metal-halide fixture, delivering up to 20,000 lumens with a 90° beam angle, making it perfect for factories, warehouses, and other high-ceiling environments. The fixture is IP65 waterproof and suitable for wet locations. Installation is simple with the provided eye bolt and safety cable. Each high bay features a die-cast, corrosion-resistant aluminum housing, a black powder-coated finish, and a clear polycarbonate lens.
Enhance your UFO lights with the optional PIR motion sensor, which allowes you to program your lighting system to maximize energy savings by controlling light power, managing brightness levels, and setting schedules. Optimize your lighting management to significantly reduce overall energy consumption.
Applications
|
•Warehouses |
•Workshops |
|
•Convention Centers |
•Automotive Centers |
|
•Storage Facilities |
•Distribution Centers |
|
•Factories |
•Supermarkets |
|
•Retail |
•Gymnasiums |
Certifications
Specifications
|
Model NO. |
TES-HG-HL07-100W-50K |
DLC Part # |
KWPDLMWMCLV |
|
Warranty |
5 Years |
UPC |
659359959417 |
|
Input Voltage |
120-277V |
Dimmable |
0-10V |
|
Input Wattage |
100W |
Equal to |
300W MH |
|
Delivered Lumens |
20,000 |
CRI |
>70 |
|
Efficacy |
200 LM/W |
Available CCT |
5000K/4000K/3000K |
|
Rated Life |
>50,000 Hrs |
THD |
<20% |
|
Power Fact |
>0.9 |
Control |
Dusk To Down Photocell |
|
Operating Temp |
-40°F to 113°F |
Dimension |
14.33”x5.78”x9.26” |
|
Certifications |
UL Wet Locations |
Weight |
6.5 Lbs |
